Mutant Monitoring Systems (MMS) Day 8 – Monitoring

IMPORTANT: Since the first publication of the Mutant Monitoring System we have made a number of updates to the concepts and code presented in the blog series. You can find the latest version now in ScyllaDB University. Click here to be directed to the new version.

mms

This is part 8 of a series of blog posts that provides a story arc for ScyllaDB Training.

In the past two posts, we expanded the Mutant Monitoring System across multiple datacenters and learned about the available consistency levels. With our infrastructure in place, we can move on to more important concepts like Monitoring. Krishna, the manager of the Fire and Ice Mutant division has set fire to a complete datacenter after he was mad about Deris, an in-memory mutant. Since DevOps hasn’t configured ScyllaDB monitoring, no metrics to trigger an alarm were sent.

After this event, Division 3 decided that it was important to properly monitor all of the ScyllaDB nodes so we can examine important details such as performance, latency, node availability, and more. In this post, we will use the ScyllaDB Monitoring project to monitor our ScyllaDB cluster.

About ScyllaDB Monitoring

mms

The ScyllaDB Monitoring stack runs in Docker and consists of Prometheus and Grafana containers. Prometheus is an open source systems monitoring and alerting toolkit and is used to gather metrics from the ScyllaDB cluster. Grafana is an open source analytics platform that will allow us to visualize the data in Graphs from Prometheus. ScyllaDB Monitoring will be able to communicate with the ScyllaDB cluster in this exercise because all of the components will be on the same virtual network.

With ScyllaDB Monitoring, Division 3 can monitor Internal DB metrics such as load, throughput, latency, reads, writes, cache hits and misses, and more. Linux metrics are also recorded such as disk activity, utilization, and networking. To get started, we will first need to bring up our ScyllaDB cluster.

Starting the ScyllaDB Cluster

The ScyllaDB Cluster should be up and running with the data imported from the previous blog posts. The MMS Git repository has been updated to provide the ability to automatically import the keyspaces and data. If you have the Git repository cloned already, you can simply do a “git pull” in the scylla-code-samples directory.

git clone https://github.com/scylladb/scylla-code-samples.git
cd scylla-code-samples/mms

Modify docker-compose.yml and add the following line under the environment: section of scylla-node1:

- IMPORT=IMPORT

Now the ScyllaDB containers can be built and run with the following commands:

docker-compose build
docker-compose up -d

After roughly 60 seconds, the existing MMS data will be automatically imported. When the cluster is up and running, we can configure and start the ScyllaDB Monitoring stack next.

Configuring and Starting ScyllaDB Monitoring

From the scylla-code-samples directory, we will need to clone the scylla-grafana-monitoring Git repository:

cd scylla-code-samples/mms
git clone https://github.com/scylladb/scylla-grafana-monitoring.git
cd scylla-grafana-monitoring

Next, we will need to copy the configuration files and modified scripts used to make ScyllaDB Monitoring work with the Mutant Monitoring System. Please note that in production, you should follow the official ScyllaDB Monitoring documentation.

cp ../monitoring/scylla_servers.yml prometheus/
cp ../monitoring/start-grafana.sh .
cp ../monitoring/node_exporter_servers.yml prometheus/
cp ../monitoring/make_dashboards.py .
cp ../monitoring/start-all.sh .
mkdir datadir

With the configuration files in place, we can start ScyllaDB Monitoring with the following commands:

./start-all.sh -d datadir

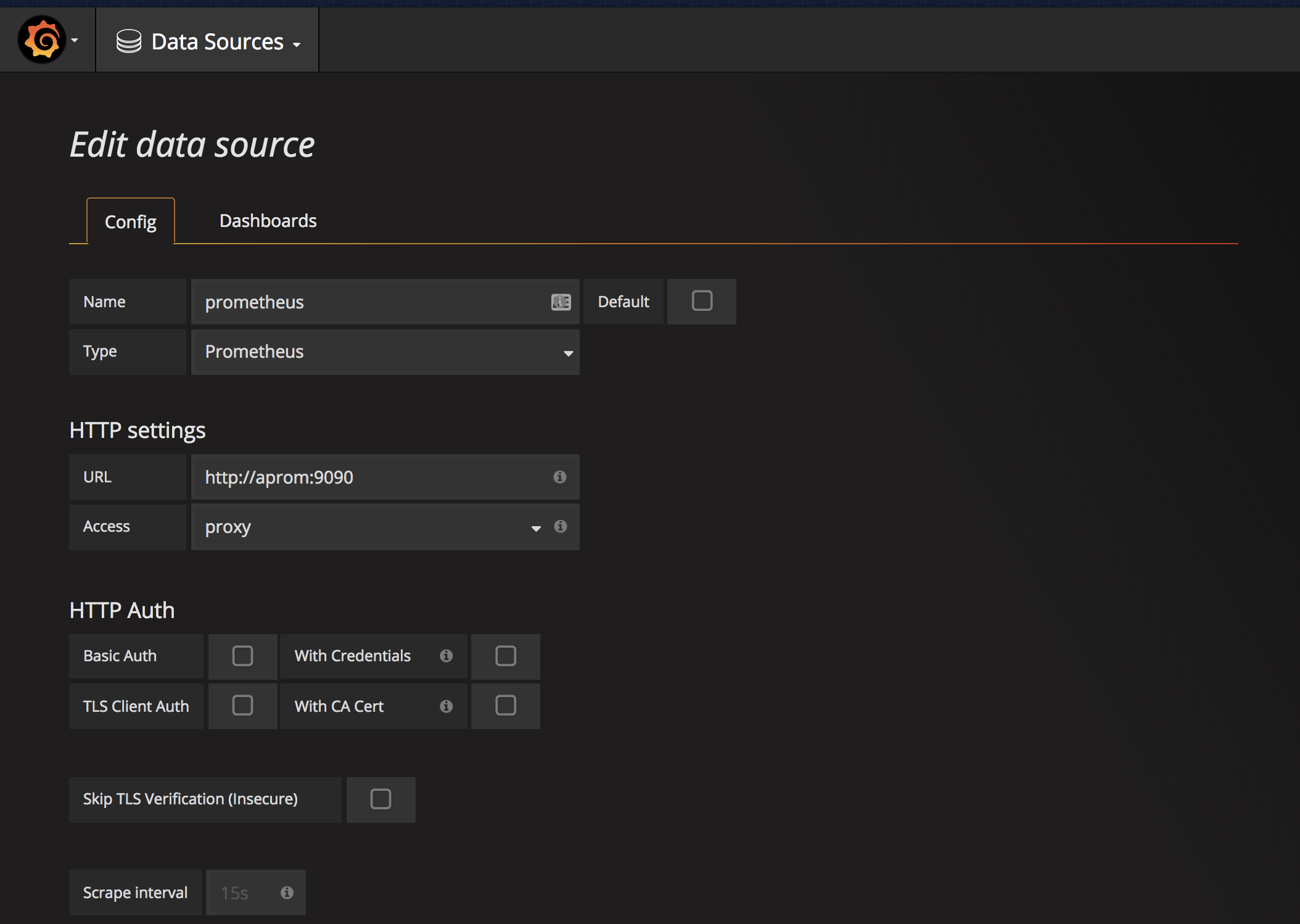

The Docker containers should be up and running now. ScyllaDB Monitoring can be accessed in your web browser at http://127.0.0.1:3000/. The next step is to configure Grafana to communicate with Prometheus by clicking on the Grafana Logo followed by Data sources. Choose Prometheus and under HTTP settings, change URL to http://aprom:9090. Click save and test.

mms

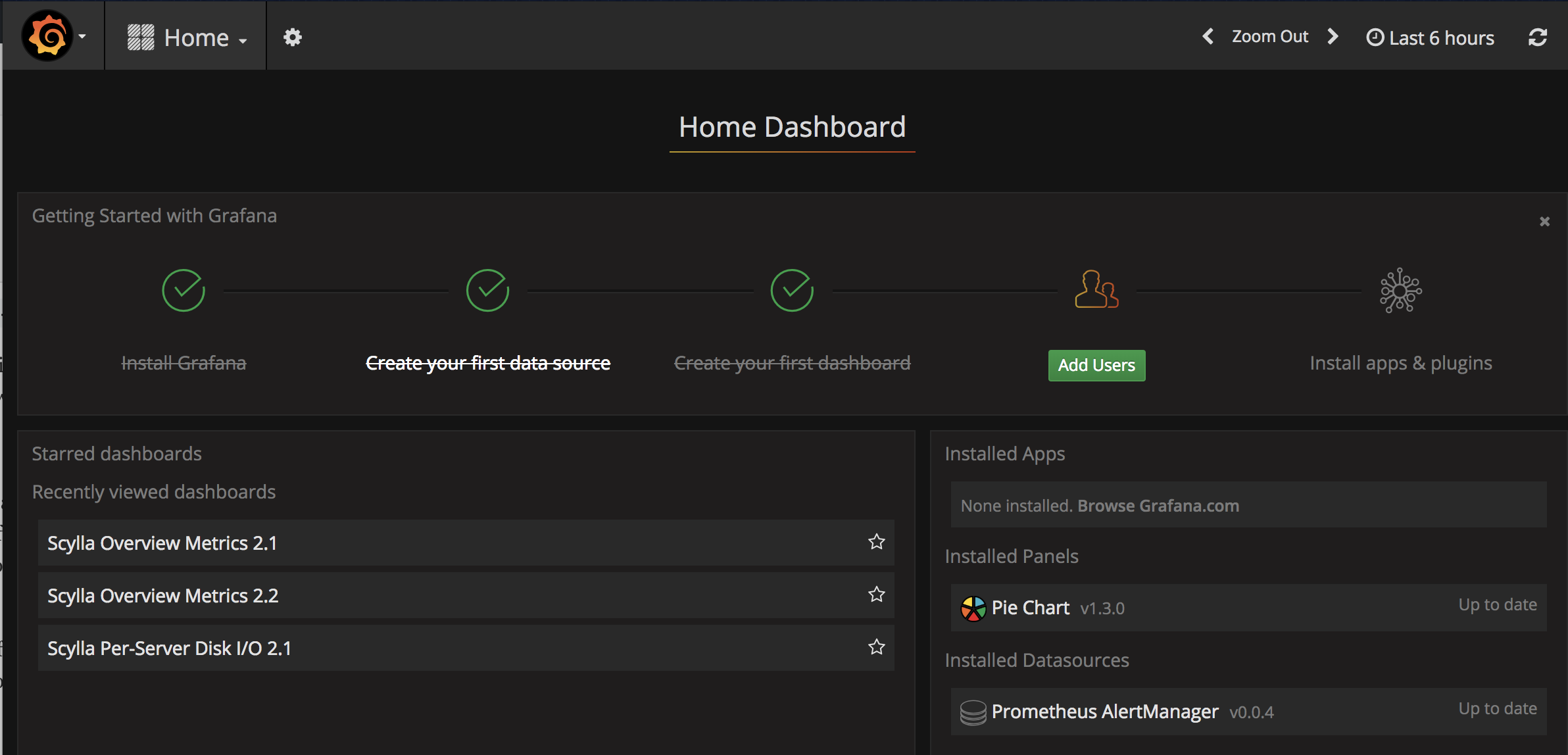

To view the metrics, click on the Grafana Logo followed by Dashboards. Next, click on ScyllaDB Overview Metrics 2.1.

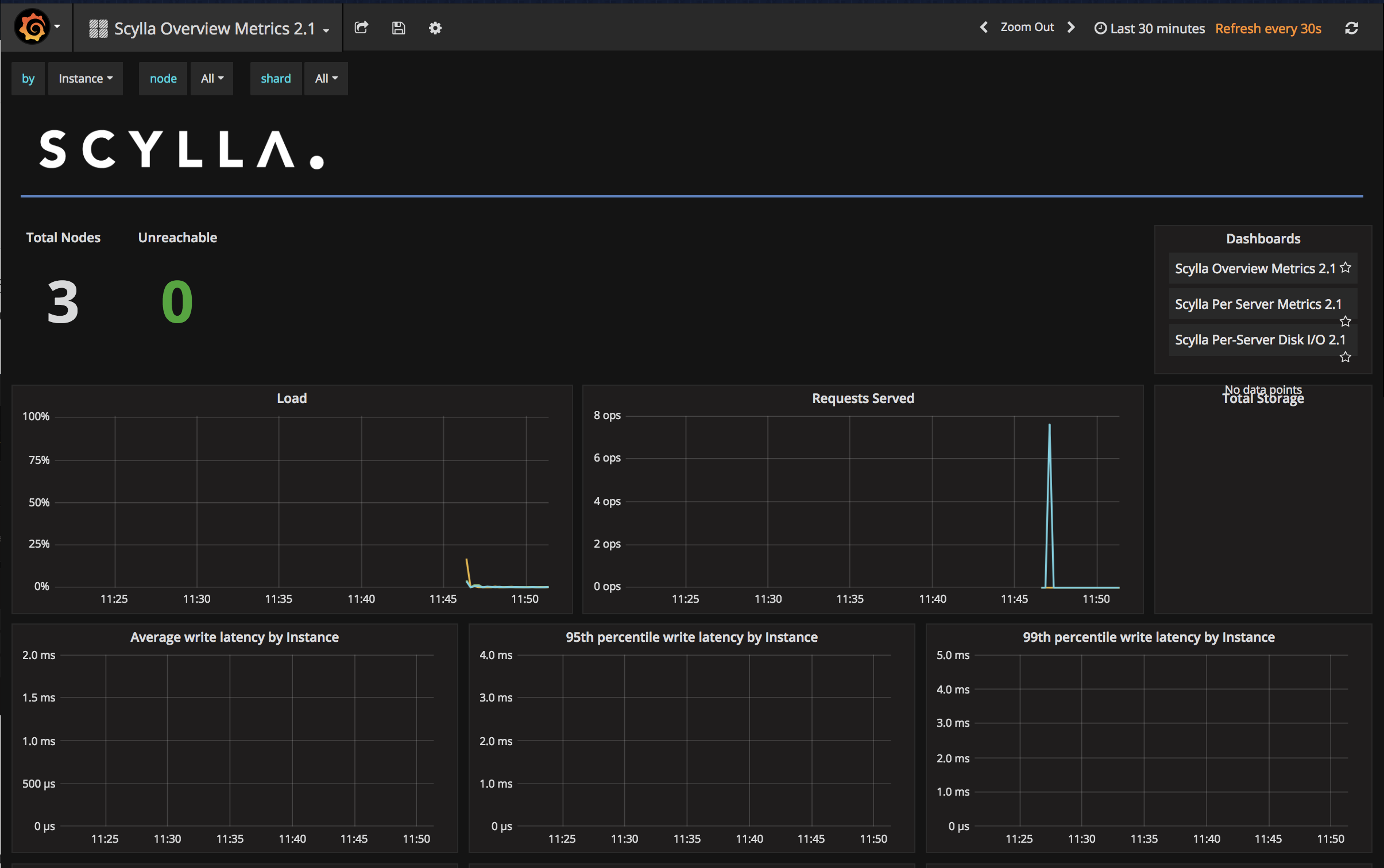

From this dashboard, you will be able to see useful information such as Total Requests, Load information, Disk Activity, and more.  The problem now is that the graphs do not look that interesting because there is no activity on the cluster. To make the graphs pretty, let’s run a load generator.

mms

Starting the Load Generator

The load generator is a simple Node.js application that will populate the tracking keyspace with data. To get started, we will first need to build the Docker container:

cd scylla-code-samples/mms/loadgen
docker build -t loadgen .

To start the load generator, run the following command:

docker run -d --net=mms_web --name loadgen loadgen

After 60 seconds, the load generator will begin populating the keyspace with data. You will be able to see when it starts by viewing the container logs:

docker logs -f loadgen

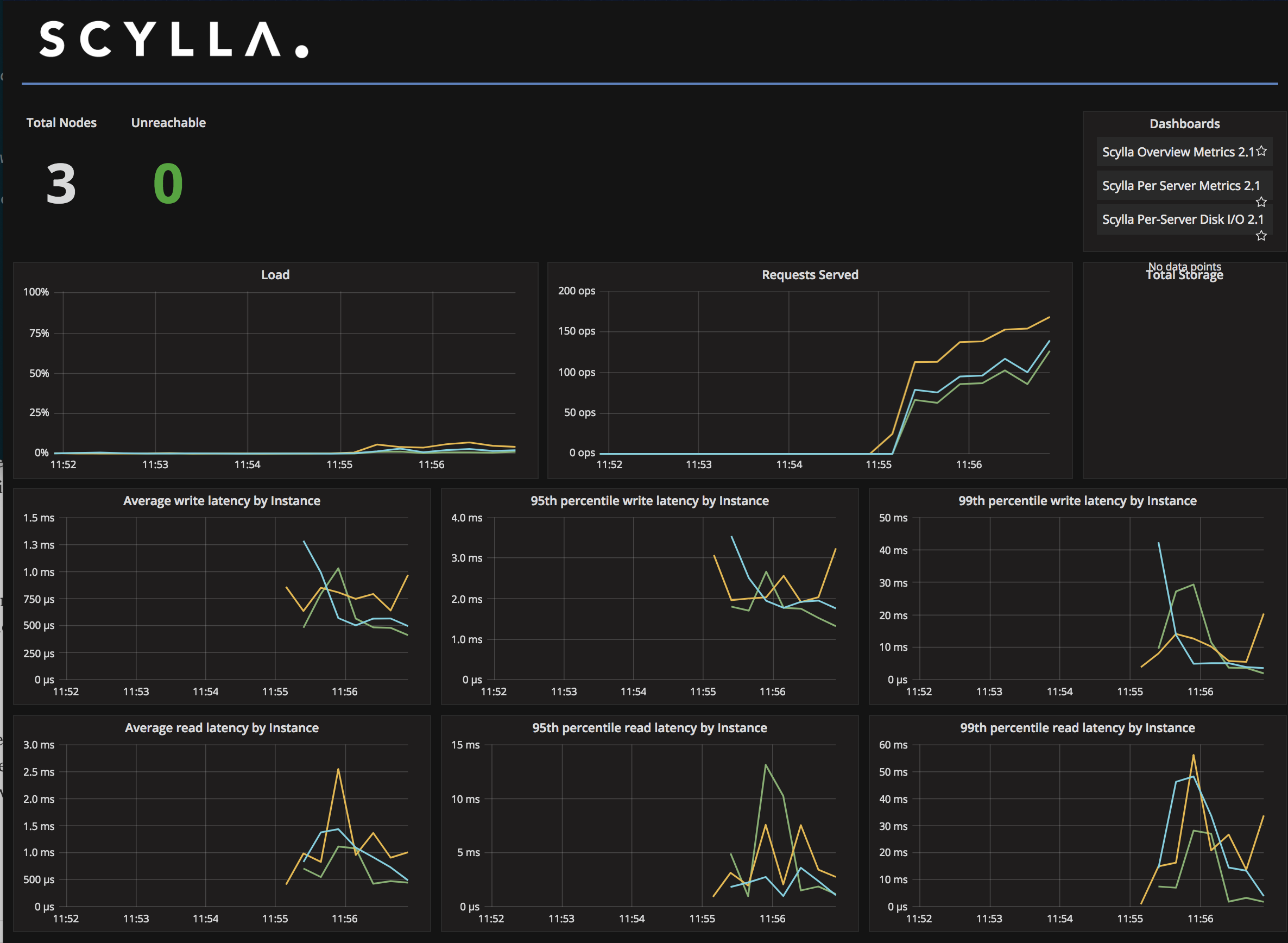

You can now switch back to the Grafana dashboard and the graphs should be more interesting and colorful than before. After a few minutes, they will be even better and we can begin to dive into ScyllaDB Monitoring and see useful information about how MMS is running.

mms

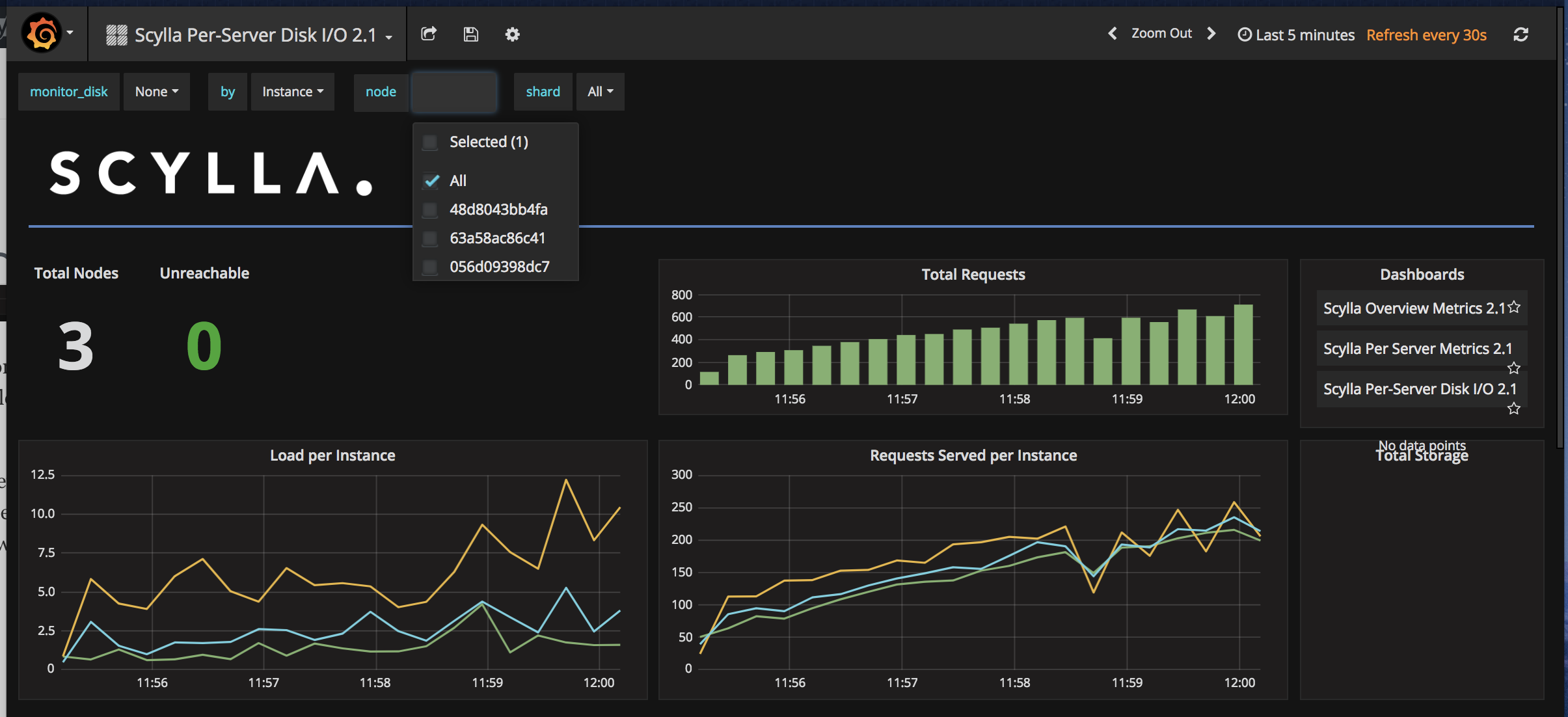

ScyllaDB Monitoring also shows useful information on a per-node basis. To view that dashboard, click on the Grafana logo followed by Dashboards. Next, click ScyllaDB Per-Server Disk I/O 2.1.

From here you can view node-specific details individually or as a cluster. To select more nodes to monitor, click on the node box on the top of the screen and choose ALL or however many nodes you want to view.

mms

Taking Down a Node

Now let’s observe what happens on the dashboard when a node is taken down from the cluster with the following command:

docker pause mms_scylla-node3_1

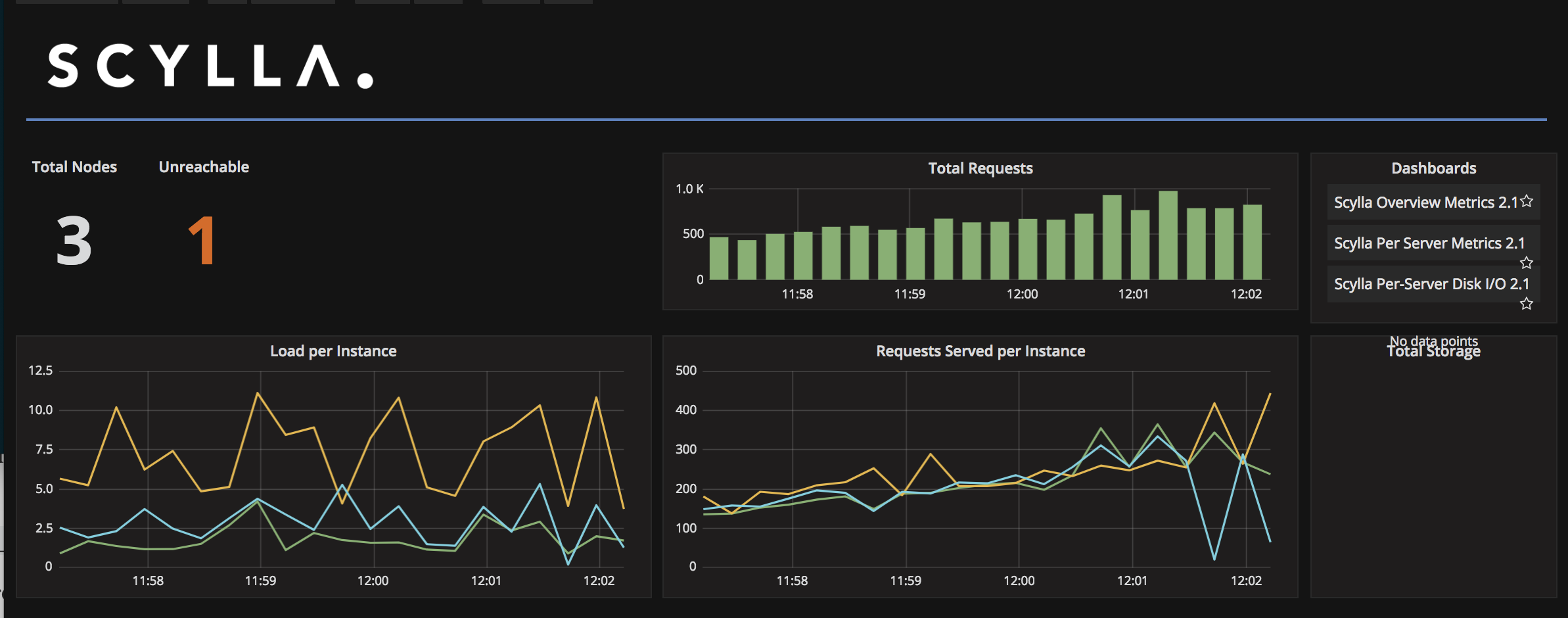

After a few seconds, we will see that there are still a total of three nodes and one is unreachable.

To bring that node online, run the following command:

docker unpause mms_scylla-node3_1

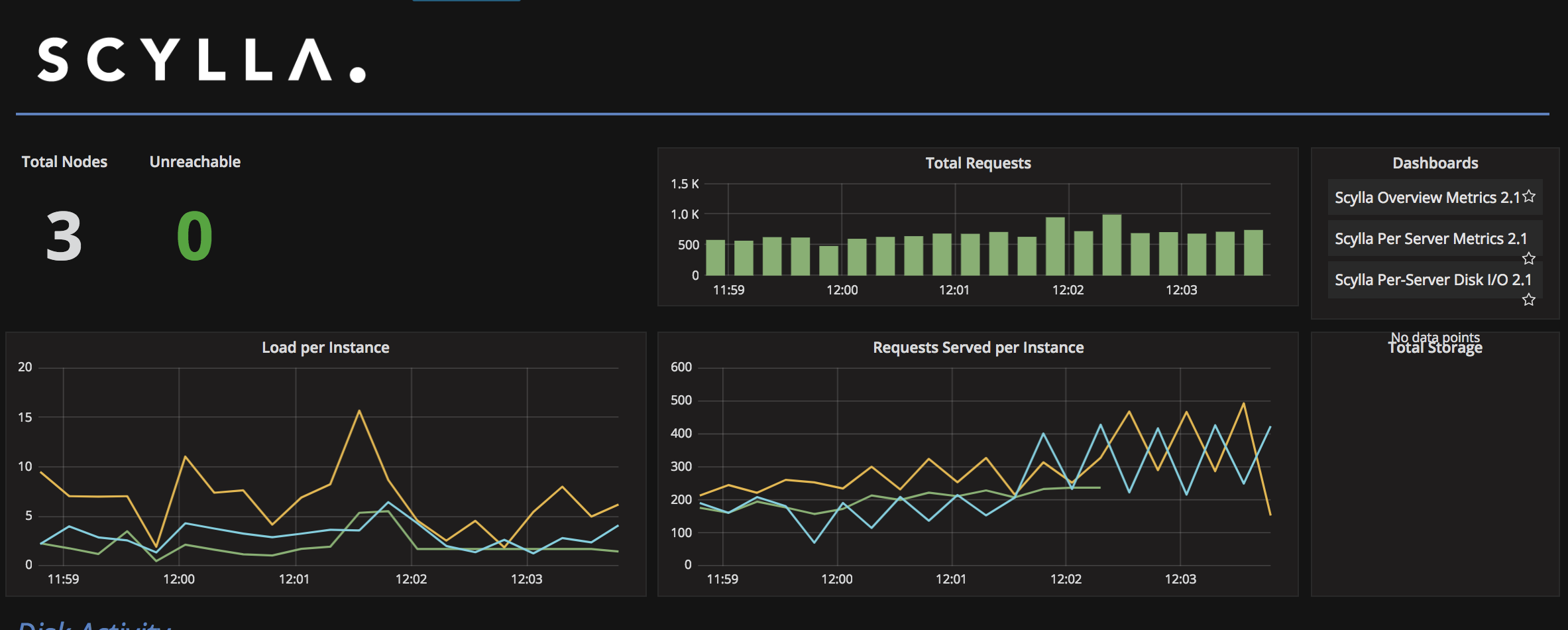

After a few seconds, there should be no unreachable nodes on the dashboard.

Conclusion

We are now ready at Division 3 to monitor our Mutant Monitoring System using ScyllaDB Monitoring. If a node goes down or performance is becoming an issue, we will be able to quickly see that from the dashboard. In our next installment of the Mutant Monitoring Series, we will discuss how to use a programming language to interact with MMS. Please remain safe out there!
