What does your team need to know about tablets– at a purely pragmatic level? Here are answers to the top user questions.
The latest ScyllaDB releases feature some significant architectural shifts. Tablets build upon a multi-year project to re-architect our legacy ring architecture. And our metadata is now fully consistent, thanks to the assistance of Raft. Together, these changes can help teams with elasticity, speed, and operational simplicity.
Avi Kivity, our CTO and co-founder, provided a detailed look at why and how we made this shift in a series of blogs (Why ScyllaDB Moved to “Tablets” Data Distribution and How We Implemented ScyllaDB’s “Tablets” Data Distribution).
Join Avi for a technical deep dive…at our upcoming livestream
And we recently created this quick demo to show you what this looks like in action, from the point of view of a database user/operator:
But what does your team need to know – at a purely pragmatic level? Here are some of the questions we’ve heard from interested users, and a short summary of how we answer them.
What’s the TL;DR on tablets?
Tablets are the smallest replication unit in ScyllaDB. Data gets distributed by splitting tables into smaller logical pieces called tablets, and this allows ScyllaDB to shift from a static to a dynamic topology. Tablets are dynamically balanced across the cluster using the Raft consensus protocol. This was introduced as part of a project to bring more elasticity to ScyllaDB, enabling faster topology changes and seamless scaling.
Tablets acknowledge that most workloads do not follow a static traffic pattern. In fact, most often follow a cyclical curve with different baseline and peaks through a period of time. By decoupling topology changes from the actual streaming of data, tablets therefore present significant cost saving opportunities for users adopting ScyllaDB by allowing infrastructure to be scaled on-demand, fast.
Previously, adding or removing nodes required a sequential, one-at-a-time and serializable process with data streaming and rebalancing. Now, you can add or remove multiple nodes in parallel. This significantly speeds up the scaling process and makes ScyllaDB much more elastic.
Tablets are distributed on a per-table basis, with each table having its own set of tablets. The tablets are then further distributed across the shards in the ScyllaDB cluster. The distribution is handled automatically by ScyllaDB, with tablets being dynamically migrated across replicas as needed. Data within a table is split across tablets based on the average geometric size of a token range boundary.
How do I configure tablets?
Tablets are enabled by default in ScyllaDB 2025.1 and are also available with ScyllaDB Cloud. When creating a new keyspace, you can specify whether to enable tablets or not. There are also three key configuration options for tablets: 1) the enable_tablets boolean setting, 2) the target_tablet_size_in_bytes (default is 5GB), and 3) the tablets property during a CREATE KEYSPACE statement.
Here are a few tips for configuring these settings:
- enable_tablets indicates whether newly created keyspaces should rely on tablets for data distribution. Note that tablets are currently not yet enabled for workloads requiring the use of Counters Tables, Secondary Indexes, Materialized Views, CDC, or LWT.
- target_tablet_size_in_bytes indicates the average geometric size of a tablet, and is particularly useful during tablet split and merge operations. The default indicates splits are done when a tablet reaches 10GB and merges at 2.5GB. A higher value means tablet migration throughput can be reduced (due to larger tablets), whereas a lower value may significantly increase the number of tablets.
- The tablets property allows you to opt for tablets on a per keyspace basis via the ‘enabled’ boolean sub-option. This is particularly important if some of your workloads rely on the currently unsupported features mentioned earlier: You may opt out for these tables and fallback to the still supported vNode-based replication strategy.
- Still under the tablets property, the ‘initial’ sub-option determines how many tablets are created upfront on a per-table basis. We recommend that you target 100 tablets/shard. In future releases, we’ll introduce Per-table tablet options to extend and simplify this process while deprecating the keyspace sub-option.
How/why should I monitor tablet distribution?

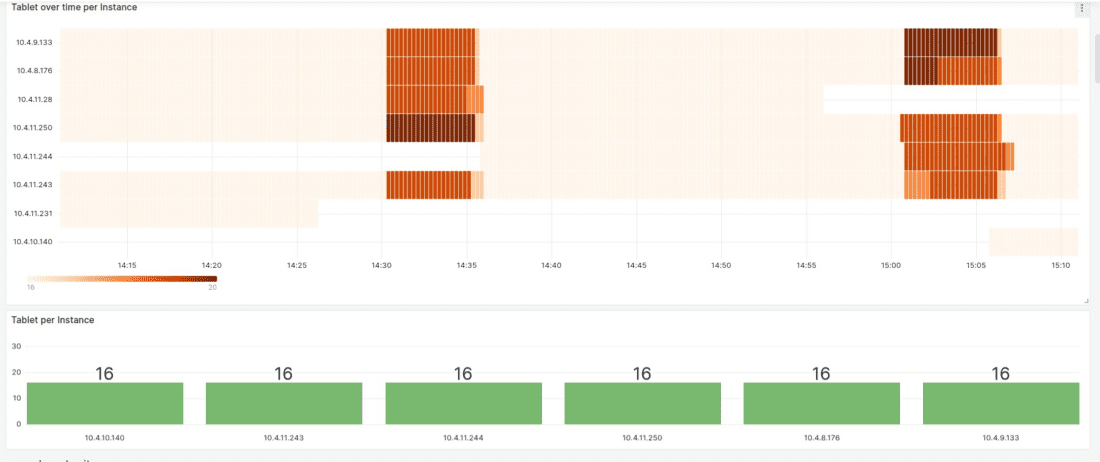

Starting with ScyllaDB Monitoring 4.7, we introduced two additional panels for the observability and distribution of tablets within a ScyllaDB cluster. These metrics are present within the Detailed dashboard under the Tablets section:
The Tablets over time panel is a heatmap showing the tablet distribution over time. As the data size of a tablet-enabled table grows, you should observe the number of tablets increasing (tablet split) and being automatically distributed by ScyllaDB. Likewise, as the table size shrinks, the number of tablets should be reduced (tablet merge, but to no less than your initially configured ‘initial’ value within the keyspace tablets property). Similarly, as you perform topology changes (e.g., adding nodes), you can monitor the tablet distribution progress. You’ll notice that existing replicas will have their tablet count reduced while new replicas will increase.
The Tablets per DC/Instance/Shard panel shows the absolute count of tablets within the cluster. Under heterogeneous setups running on top of instances of the same size, this metric should be evenly balanced. However, the situation changes for heterogeneous setups with different shard counts. In this situation, it is expected that larger instances will hold more tablets given their additional processing power. This is, in fact, yet another benefit of tablets: the ability to run heterogeneous setups and leave it up to the database to determine how to internally maximize each instance’s performance capabilities.
What are the impacts of tablets on maintenance tasks like node cleanup?
The primary benefit of tablets is elasticity. Tablets allow you to easily and quickly scale out and in your database infrastructure without hassle. This not only translates to infrastructure savings (like avoiding being overprovisioned for the peak all the time). It also allows you to reach a higher percentage of storage utilization before rushing to add more nodes – so you can better utilize the underlying infrastructure you pay for.
Another key benefit of tablets is that they eliminate the need for maintenance tasks like node cleanup. Previously, after scaling out the cluster, operators would need to run node cleanup to ensure data was properly evicted from nodes that no longer owned certain token ranges. With tablets, this is no longer necessary. The compaction process automatically handles the migration of data as tablets are dynamically balanced across the cluster. This is a significant operational improvement that reduces the maintenance burden for ScyllaDB users.
The ability to now run heterogeneous deployments without running through cryptic and hours-long tuning cycles is also a plus. ScyllaDB’s tablet load balancer is smart enough to figure out how to distribute and place your data. It considers the amount of compute resources available, reducing the risk of traffic hotspots or data imbalances that may affect your clusters’ performance.
In the future, ScyllaDB will bring transparent repairs on a per-tablet basis, further eliminating the need for users to worry about repairing their clusters, and also provide “temperature-based balancing” so that hot partitions get split and other shards cooperate with the incoming load.
Do I need to change drivers?
ScyllaDB’s latest drivers are tablet-aware, meaning they understand the tablets concept and can route queries to the correct nodes and shards. However, the drivers do not directly query the internal system.tablets table. That could become unwieldy as the number of tablets grows. Furthermore, tablets are transient, meaning a replica owning a tablet may no longer be a natural endpoint for it as time goes by. Instead, the drivers use a dynamic routing process: when a query is sent to the wrong node/shard, the coordinator will respond with the correct routing information, allowing the driver to update its routing cache. This ensures efficient query routing as tablets are migrated across the cluster.
When using ScyllaDB tablets, it’s more important than ever to use ScyllaDB shard-aware – and now also tablet-aware – drivers instead of Cassandra drivers. The existing drivers will still work, but they won’t work as efficiently because they lack the necessary logic to understand the coordinator-provided tablet metadata. Using the latest ScyllaDB drivers should provide a nice throughput and latency boost.
Read more in How We Updated ScyllaDB Drivers for Tablets Elasticity.
More questions?
If you’re interested in tablets and we didn’t answer your question here, please reach out to us! Our Contact Us page offers a number of ways to interact, including a community forum and Slack.
